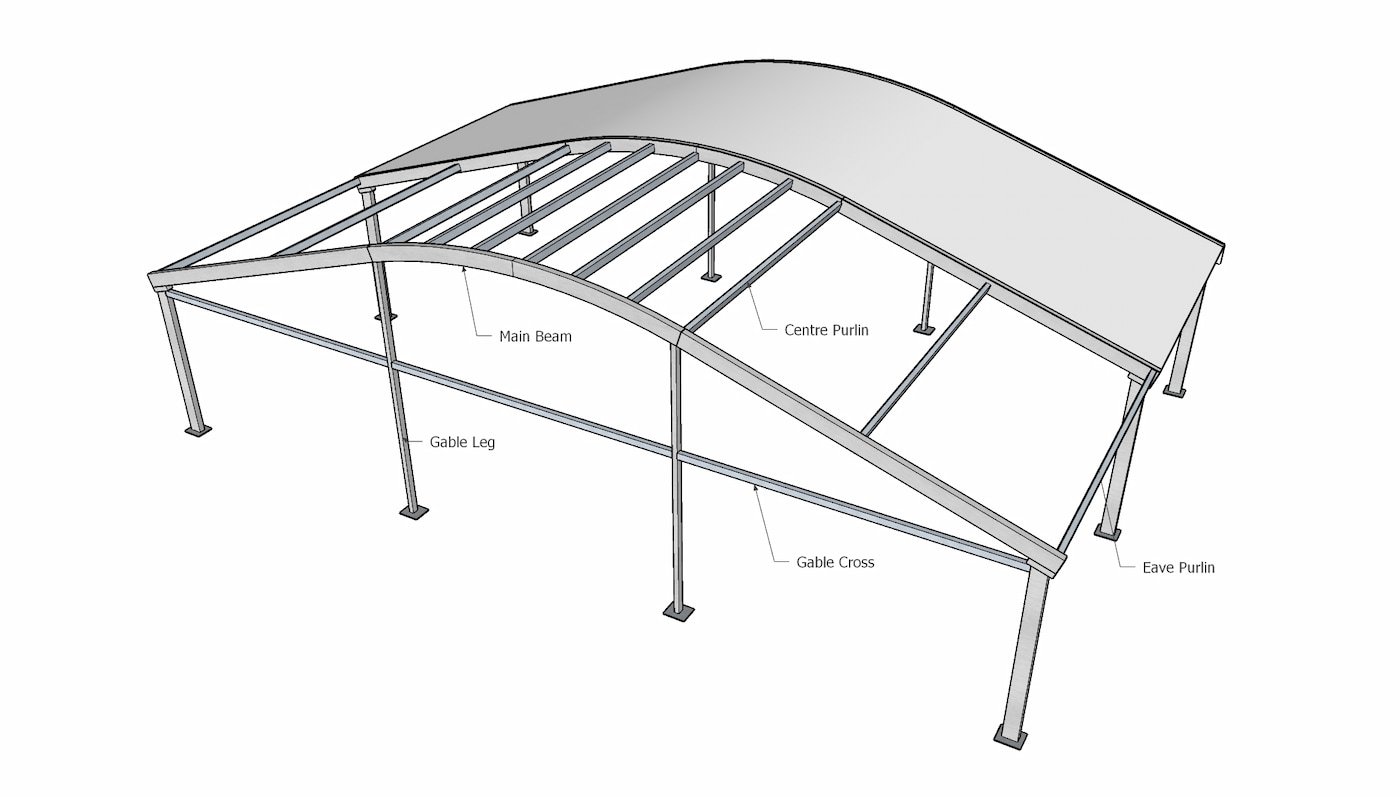

Spec sheet image copy 1

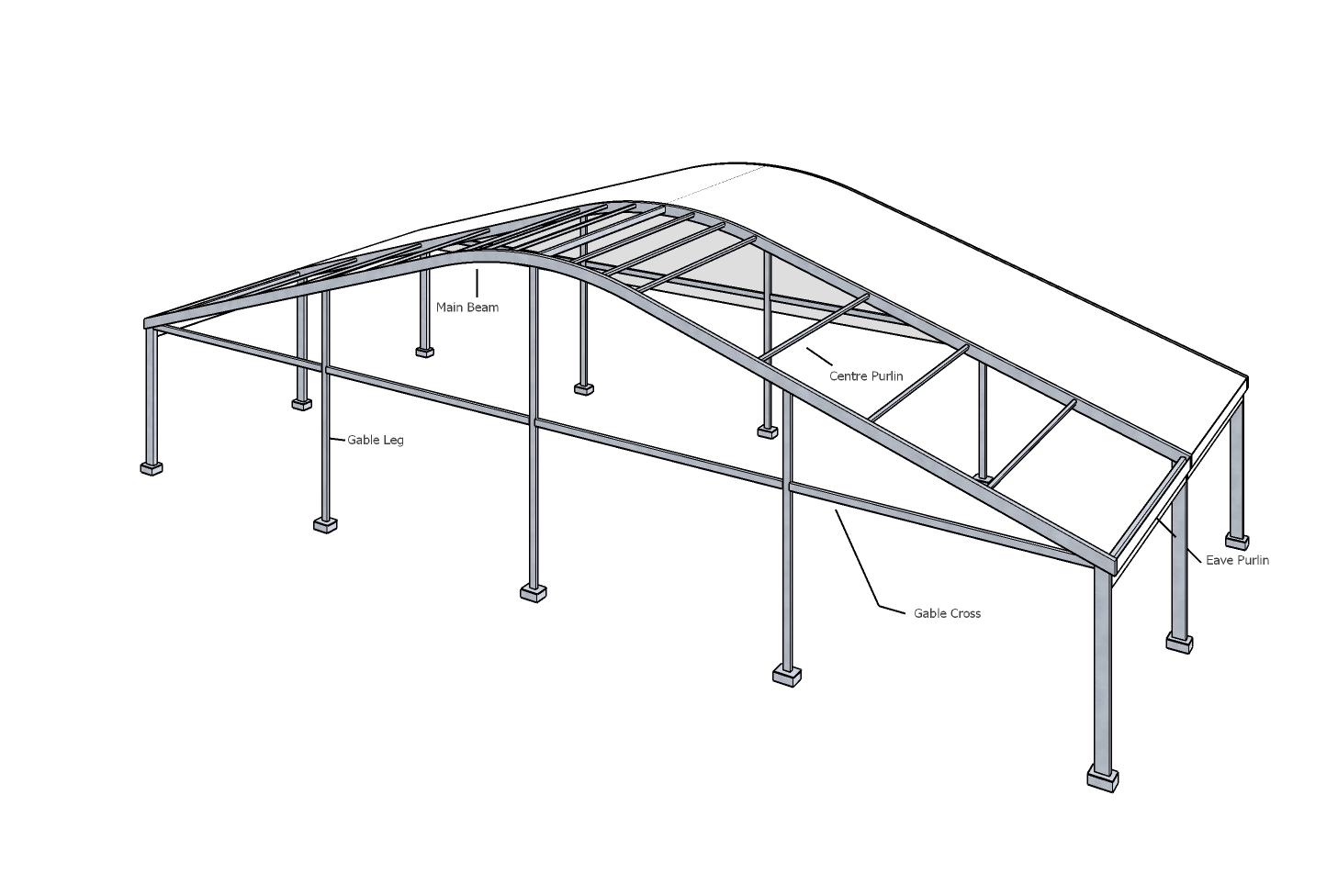

20M Curve
\\ Adaptable Clearspan Curved Structures

Clearspan Curved Frame.

Our clearspan curved structure range is constructed with an aluminium frame, very similar to the A Frame but with an innovative and modern look. The curved roof is split into three parts and requires significantly more inter purlins to ensure the pvc follows the curved contour and stays supported. This structure can be built with cassette, decking or ply flooring. And finished with PVC, Insulated Solid Sides or Glass with an option of lining for the interior. These structures can be utilised for a variety of applications.

The curved frame is new to our stock in 2020, we are constantly looking to purchase more and build our product portfolio. So come back and check to see if our curved and product range has been extended!

Large Structures
Interested? Contact Us

Technical Specifications

Eave Height
2.5m
Span Width
15m
Ridge Height
4.88m / 5.38m
Bay Distance
5m
Roof Pitch
18°
Max Wind Speed
102 km/h
Main Profile Size
220 x 100
Ballast Requirements
2.4T Lego Concrete Blocks
Eave Height
Span Width
Ridge Height
Bay Distance
Roof Pitch
Max Wind Speed
Main Profile Size
Ballast Requirements
Spec sheet image copy 1

Download Data Sheet

20M Curve

Download Data Sheet
